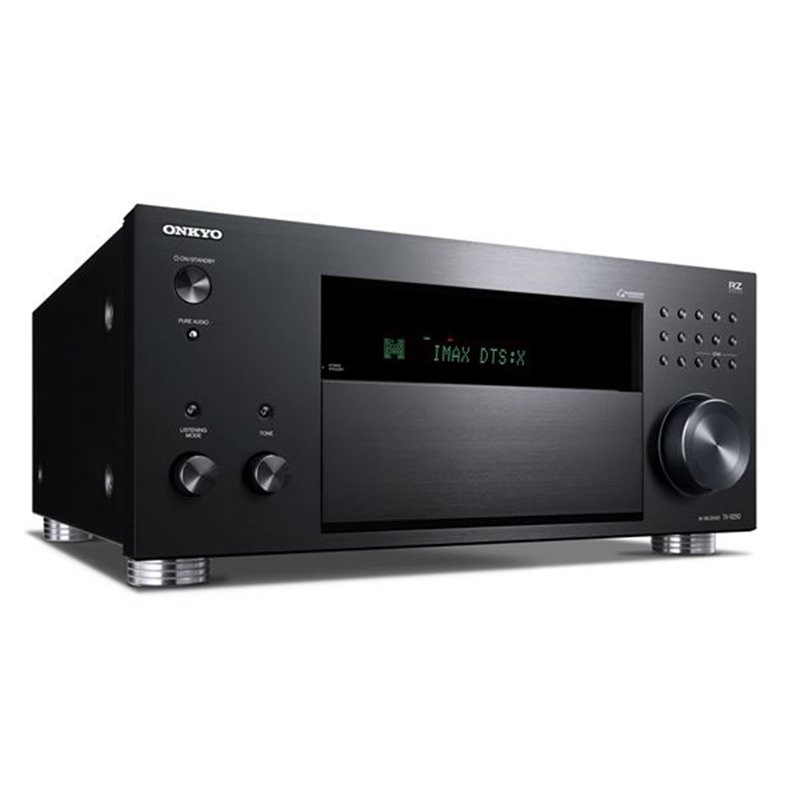

ONKYO 9.2 Channel Home Theatre Network AV Receiver Amplifier. 215 Watts per Channel.1x Phono (MM) In, 2x Subwoofer Preout, 9x HDMI (7x In 2x Out) 4x Audio RCA In, 2x Digital In, 2x Audio RCA Out. Weight 14kg
Revitalize Your Entertainment Lifestyle
Start your new entertainment life in the media room, where the RZ50 passes 8K HDR video to your display via HDMI®—optimized for lag-free gameplay— and feeds Dolby Atmos® or DTS:X® sound to your 5.2.4-ch speaker system with high-current power behind it. Move to another space and music follows with three-zone powered audio and the SMART AV Receiver™ suite controlled by voice with easy access to streaming services. The AVR fits into your Sonos system and plays to headphones over bidirectional Bluetooth® wireless technology. With 75 years of Hi-Fi knowhow elevating our THX® Certified Select and IMAX® Enhanced certified RZ Series custom amp design, music, film scores, and game soundtracks thrill with emotion, sound perfected by Dirac Live® Room Correction. This receiver has features others don’t, such as front-to-height stereo switching for background listening, DSP vocal/dialogue enhancement, My Volume presets, and an OSD function that compares source data to output settings so playback can be optimized before entertainment kicks off.
FEATURES:
215W/Ch THX® Certified Select RZ Series Dynamic Audio Amplification
Wide 5Hz~100kHz frequency response
HDMI® inputs 1–3, Main Out, and Sub/Zone 2 Out (Sub Mode output) support 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit), 4K/120p (4:4:4/10-bit) video passthrough
HDMI terminals*1 support HDR10+, Dolby Vision™, and BT.2020 colour; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport) passthrough; eARC (Main Out), and HDCP 2.3
SMART AV Receiver™ Works with Sonos*2, Chromecast built-in™, AirPlay 2, DTS Play-Fi®, Spotify®, Amazon Music HD*3, TIDAL, Deezer, TuneIn*4
Dolby Atmos® and DTS:X® playback (5.2.4-ch)
11.2-ch processing and pre-outs for 7.2.4 layouts
Dolby Atmos Height Virtualizer
IMAX Enhanced® certified signature sound by DTS:X
Supports Dirac Live® Room Correction
AccuReflex™ phase-matching solution for Dolby Atmos-enabled speakers
HDMI Main Out with eARC (enhanced Audio Return Channel)
HDMI Sub/Zone 2 Out*5 connects a second display or projector
Refined HDMI grounds, isolated SoC board, reinforced power lines
Quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi®*6
Powered Zone 2 and Zone 3 speaker outputs
Zone 2/Zone B and Zone 3 pre/line-outs distribute D/A audio
Stereo Assign Mode supports Height-channel playback
DSP-based Vocal Enhancer improves vocal/dialogue audibility
OSD function shows A/V input/output signal data, playback settings, and network info
Volume memory presets for A/V inputs via the front panel
